Huawei HCDA H12-211-ENU Exam Practice Dumps
NEW QUESTION 433
The network administrator creates VLAN 10 and assigns an IP address to VLANIF10.When using the command "display ip interface brief", the administrator finds that VLANIF10 is down.
What should be done to enable VLANIF10?
- A. Use the command "undo shutdown" under the interface view for VLANIF10.
- B. Assign a physical interface that has either an active of inactive physical state to VLAN 10.
- C. Add an interface that has an active physical state and a trunk port associated with VLAN 10.
- D. Assign only a physical interface that has an active physical state to VLAN 10.
Answer: D
NEW QUESTION 434
As specified by the RSTP protocol, when a root port fails, which type of port will function as a new root port and enters the forwarding state without any delay?
- A. Forwarding Port.
- B. Alternate Port.
- C. Edge Port.
- D. Backup Port.
Answer: B
NEW QUESTION 435
<Huawei>system-view [Huawei]command-privilege level 3 view user save
Which statement is correct about the above configuration command?
- A. Modify the user view command to a permission level of 3, and save the configuration.
- B. Modify the user's permission level to 3, and save the configuration.
- C. Modify the permission level of the save command used by a user to 3
- D. Modify the permission level of the save command in the user view to 3.
Answer: D
NEW QUESTION 436
Refer to the graphic, GE0/0/1 and GE0/0/2 on the switch are configured as hybrid interfaces. Which of the following statements are true? (Multiple Choice)
- A. The switch can be a Layer 2 or Layer 3 switch because communications do not need to be transmitted through a Layer 3 gateway.
- B. The administrative department and the finance department cannot communicate with each other because the VLANs of the two departments are different.
- C. If GE0/0/1 and GE0/0/2 on the switch are changed to trunk ports, the administrative department and finance department can communicate with each other.
- D. On the switch, the data frames sent by the finance department carry tagged VLAN 20.
- E. The data frames sent by the administrative department carry tagged VLAN 20 on the switch.
Answer: A,D
NEW QUESTION 437
Refer to the grapic.
An administrator has configured RIPv2 on the two routers, following which he implements the command silent-interface s0/0/l on RTA.
What effect will this command have on the network? (Multiple Choice)
- A. RTA will continue to learn routes from RTB.
- B. RTB will have no adjacency relationship with RTA.
- C. RTB will continue to learn routes from RTA.
- D. RTA will have no neighbor relationship with RTB.
Answer: A,B
NEW QUESTION 438
A DHCP Offer packet can carry only one DNS server address.
- A. TRUE
- B. FALSE
Answer: B
NEW QUESTION 439
The output information of a link aggregation port of a switch is as follows. If you want to delete Eth-Trunk 1, which of the following command is correct?
- A. inte GigabitEthernet 0/0/1 undo eth-trunk quit undo interface Eth-Trunk 1
- B. undo interface Eth-Trunk 1
- C. inte GigabitEthernet 0/0/2 undo eth-trunk quit undo interface Eth-Trunk 1
- D. inte GigabitEthernet 0/0/1 undo eth-trunk quit inte GigabitEthernet 0/0/2 undo eth-trunk quit undo interface Eth-Trunk1
Answer: A
NEW QUESTION 440

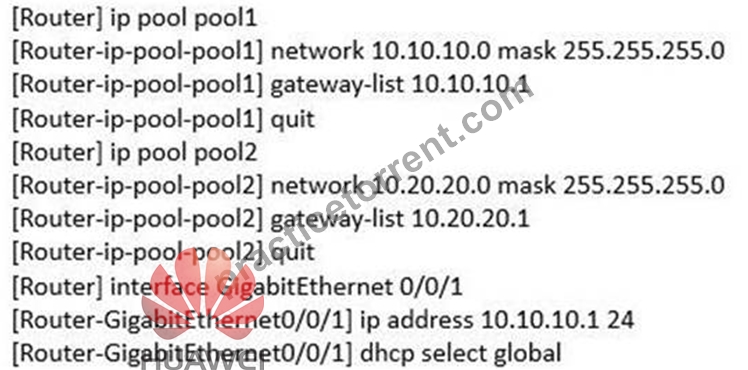

Refer to the configuration output.
Following configuration, a host is connected to the interface Gigabit Ethernet 0/0/1 of the router.
Which IP actress will the client obtain?
- A. An IP address from network 10.10.10.0/24 will be assigned.
- B. The host will be unable to obtain an IP address.
- C. An IP address may be assigned from either 10.10.10.0/24 or 10.20.20.0/24.
- D. An IP address from network 10.20.20.0/24 will be assigned.
Answer: A
NEW QUESTION 441
Refer to the displsy information.
A switch attempts to forward a frame to the MAC destination 54S9-98ec-f011.
What operation will occur on the switch?
- A. The switch will send a request to obtain the MAC address of 5489-98ec-f011.
- B. The switch will drop the frame because it does not have an entry in its MAC address table.
- C. The switch will report that the destination is unreachable and report this to the source.
- D. The switch will flood the frame via ail ports, with exception of the port on which the frame was received.
Answer: D
NEW QUESTION 442

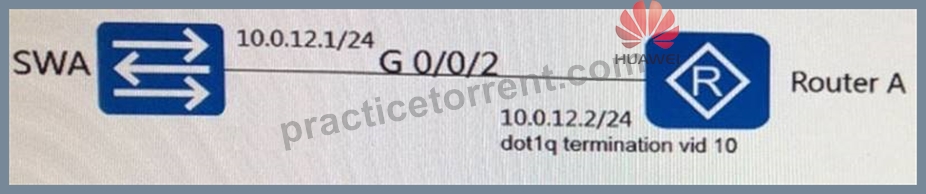

For the network shown in the following figure, the switch uses the sub-interface pair of the machine interface and the router. Which of the following configurations can fulfill this requirement?
- A. interface Vlanif10 ip address 10.0.12.1 255.255.255.0 # interface GigabitEthernet0/0/2 port link-type trunk port trunk pvid 10 port trunk allow-pass vlan 10 #
- B. interface Vlanif10 ip address 10.0.12.1 255.255.255.0 # interface GigabitEthernet0/0/2 port link-type trunk port trunk allow-pass vlan 10 #
- C. interface 10 ip address 10.0.12.1 255.255.255.0 # interface GigabitEthernet0/0/2 port link-type hybrid port hybrid untag vlan 10 #
- D. interface Vlanif10 ip address 10.0.12.1 255.255.255.0 # interface GigabitEthernet0/0/2 port link-type access port default vlan 10 #
Answer: B
NEW QUESTION 443

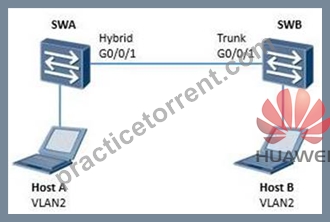

Refer to the graphic.
Interface G0/0/1 on SWA is a hybrid port in tagged mode with a PVID of 1 for which VLAN 2 is permitted. Interface G0/0/1 on SWB is a trunk port, with a PVID of 1 for which VLAN is permitted.
Which of the following statements is correct?
- A. Host A cannot communicate with Host B.
- B. Host A can send, but cannot receive frames from Host B.
- C. Host A can communicate with Host B.
- D. Host A cannot send, but can receive frames from Host B.
Answer: C
NEW QUESTION 444
What is the destination IP address of the DHCP DISCOVER packet?
- A. 127.0.0.1
- B. 224.0.0.1
- C. 255.255.255.255
- D. 224.0.0.2
Answer: C
NEW QUESTION 445
An administrator wishes to manage the router in the remote branch office, which method can be used?
- A. FTP
- B. Telnet
- C. Console Connection
- D. DHCP
Answer: B
NEW QUESTION 446
The IP address 192.168.1.127/25 represents a () address.
- A. Multicast.
- B. Broadcast.
- C. Host.
- D. Network.
Answer: B
NEW QUESTION 447
How many bits of the Port ID total length in the spanning tree protocol?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
NEW QUESTION 448
The network administrator wants to be able to effectively use the IP address of the 192.168.176.0/25 network segment. Now the company's marketing department has 20 mainframes, it is best to assign which of the following address segment to the marketing department?
- A. 192.168.176.0/25
- B. 192.168.176.160/27
- C. 192.168.176.96/27
- D. 192.168.176.48/29
Answer: C
NEW QUESTION 449
Refer to the command output.
An administrator wishes to configure RIFV2.
Which other command needs to configure for RIP routes to be advertised?
- A. network GigabitEthernet 0/0/1
- B. network 192.168.1.0
- C. network 192.168.1.0 0.0.0.255
- D. import-route GigabitEthernet 0/0/1
Answer: B
NEW QUESTION 450
An administrator discovered he/she was unable to use TFTP to transfer files to the router.
Which of the following describes the likely reason for this?
- A. UDP port 69 of the server had been blocked.
- B. The TFTP service had been disabled on the router.
- C. The username and password had been modified.
- D. TCP port 69 of the server had been blocked.
Answer: A
NEW QUESTION 451
The Eth-Truk port in manual link aggregation mode, whose transmission rate is related to (). (Multiple choice)
- A. Is the IP address configured on the member port?
- B. Is the member port on the public or private network?
- C. Number of member ports
- D. Bandwidth of member ports
Answer: C,D
